Machine Specifications:

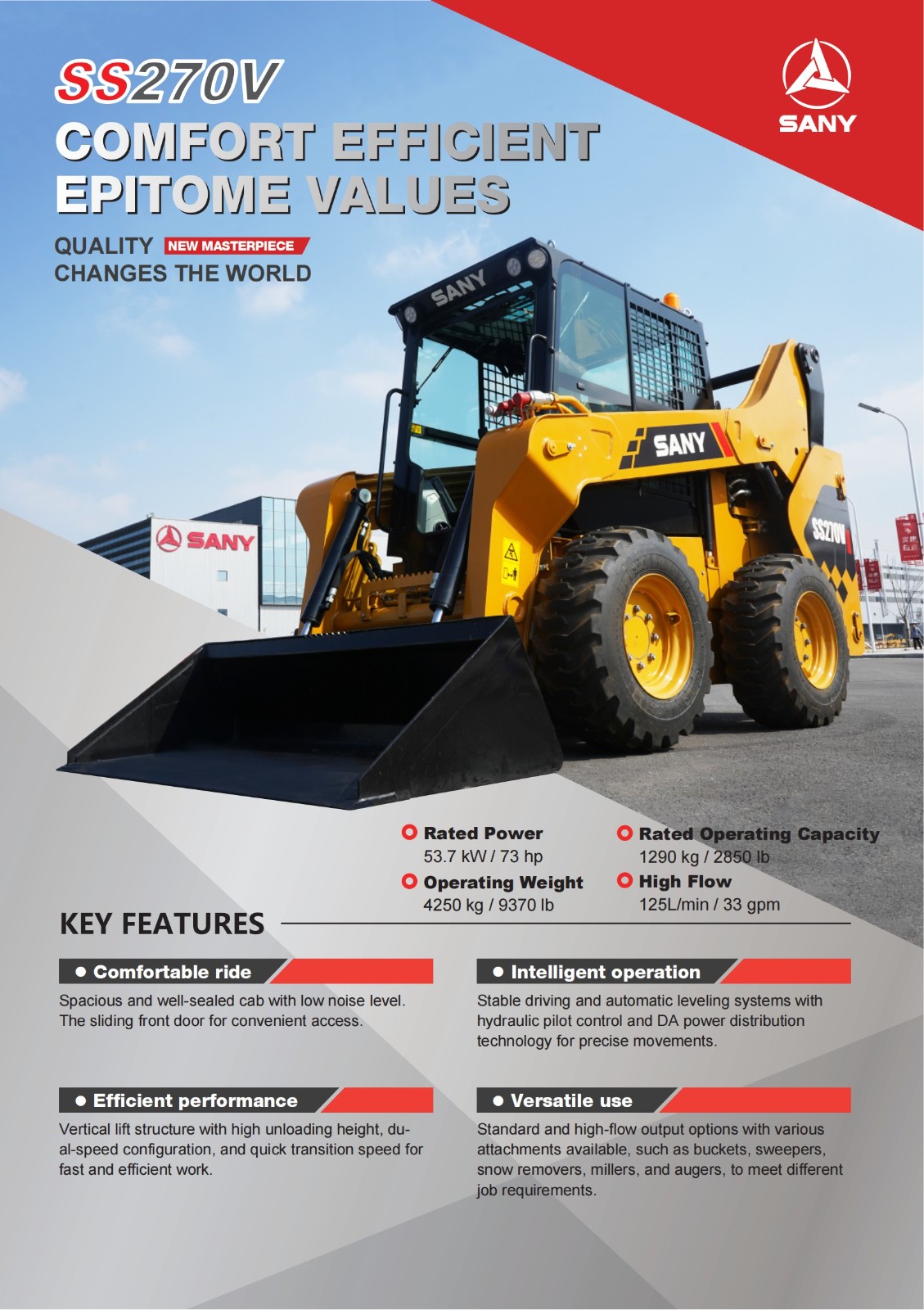

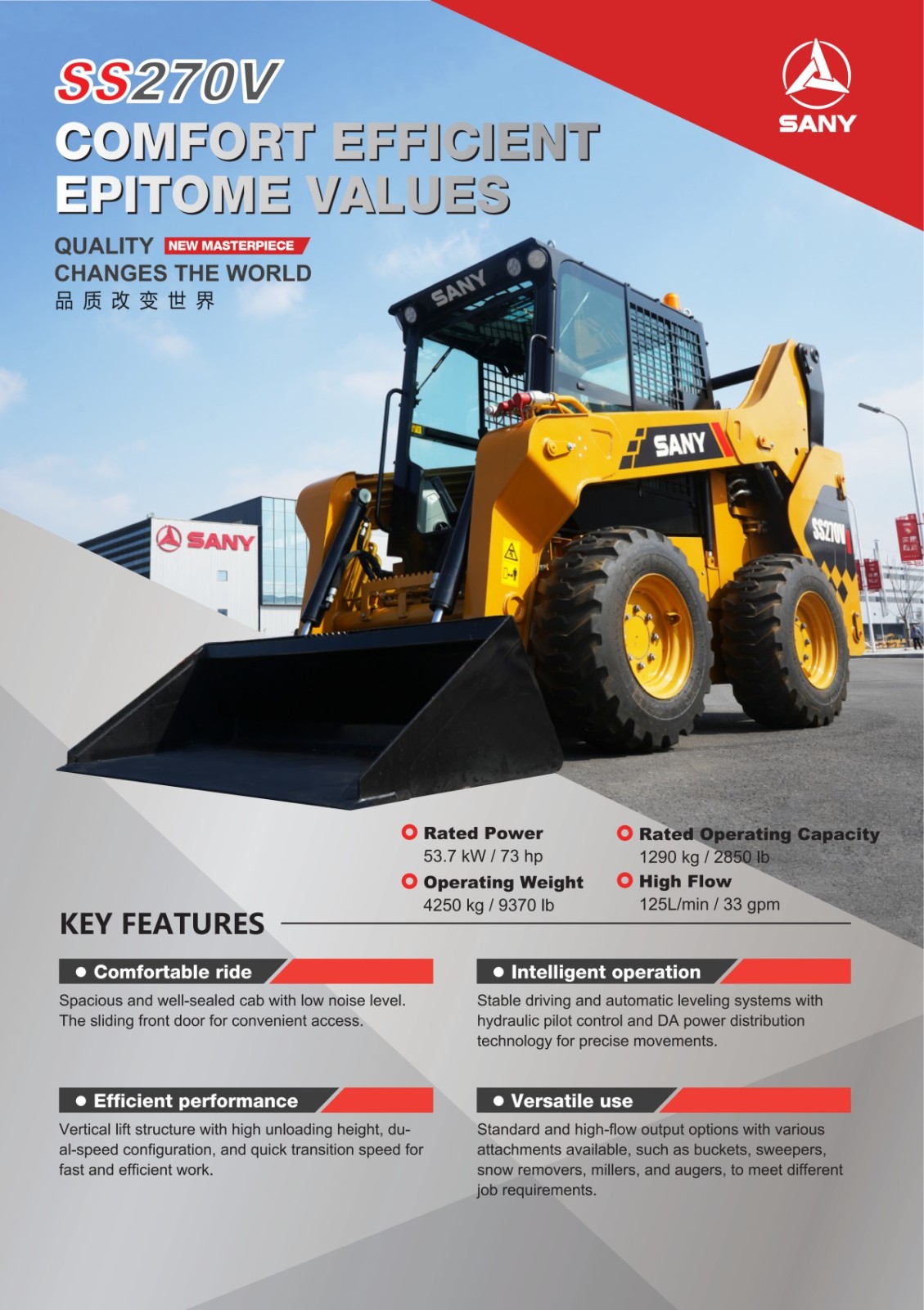

Model: SANY SS270V SKID STEER LOADER

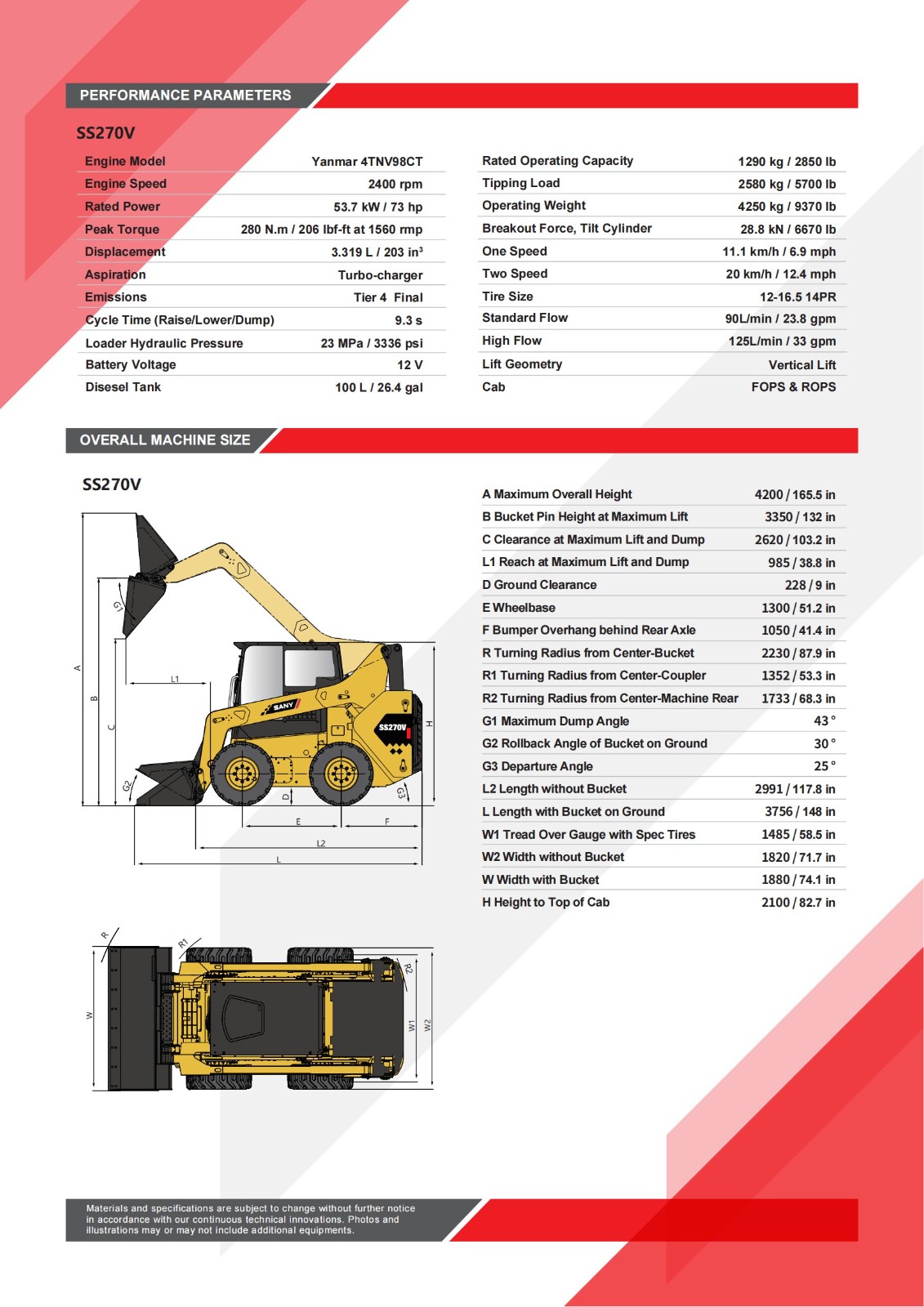

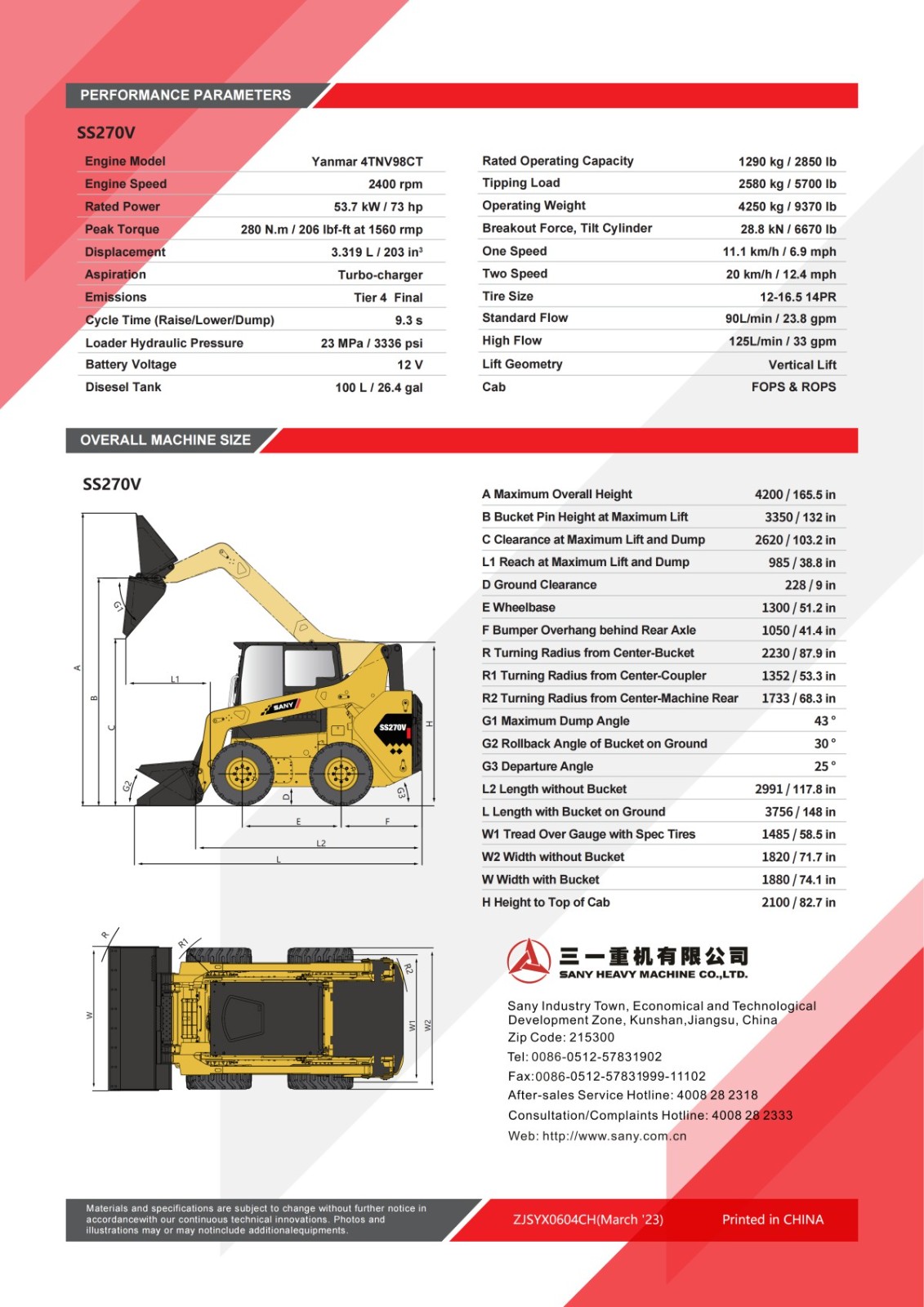

Performance:
- Operating Weight: 9,370 lbs (4,250 kg)
- Rated Operating Capacity: 2,850 lbs (1,290 kg)
- Tipping Load: 5,700 lbs (2,580 kg)
- Breakout Force (Tilt Cylinder): 6,670 lbf (28.8 kN)
- Standard Flow: 90 L/min (23.8 gpm)
- High Flow: 125 L/min (33 gpm)
- Lift Geometry: Vertical Lift
- Cycle Time (Raise/Lower/Dump): 9.3 sec
Powertrain & Hydraulics:
- Engine: Yanmar 4TNV98CT
- Rated Power: 73 hp (53.7 kW) @ 2,400 rpm
- Peak Torque: 206 lbf-ft (280 Nm) @ 1,560 rpm
- Displacement: 3.319 L (203 in3)
- Aspiration: Turbocharged
- Emissions: Tier 4 Final
- Battery Voltage: 12V
- Diesel Tank Capacity: 100 L (26.4 gal)
Dimensions:
- Max Overall Height: 165.5 in (4,200 mm)
- Bucket Pin Height at Max Lift: 132 in (3,350 mm)
- Clearance at Max Lift & Dump: 103.2 in (2,620 mm)
- Ground Clearance: 9 in (228 mm)
- Wheelbase: 51.2 in (1,300 mm)
- Tire Size: 12-16.5 14PR
Standard Features:
- Enclosed cab with ROPS & FOPS certification
- Sliding front door for easy access
- Hydraulic Pilot Control with DA Power Distribution
- Vertical lift for high unloading height
- Dual-speed for quick transitions
- Standard & high-flow options for attachments (buckets, sweepers, snow removers, augers, etc.)
- Automatic leveling system for precision movements
Warranty Terms: - 36 Months / 3000 hours Standard Factory Warranty
