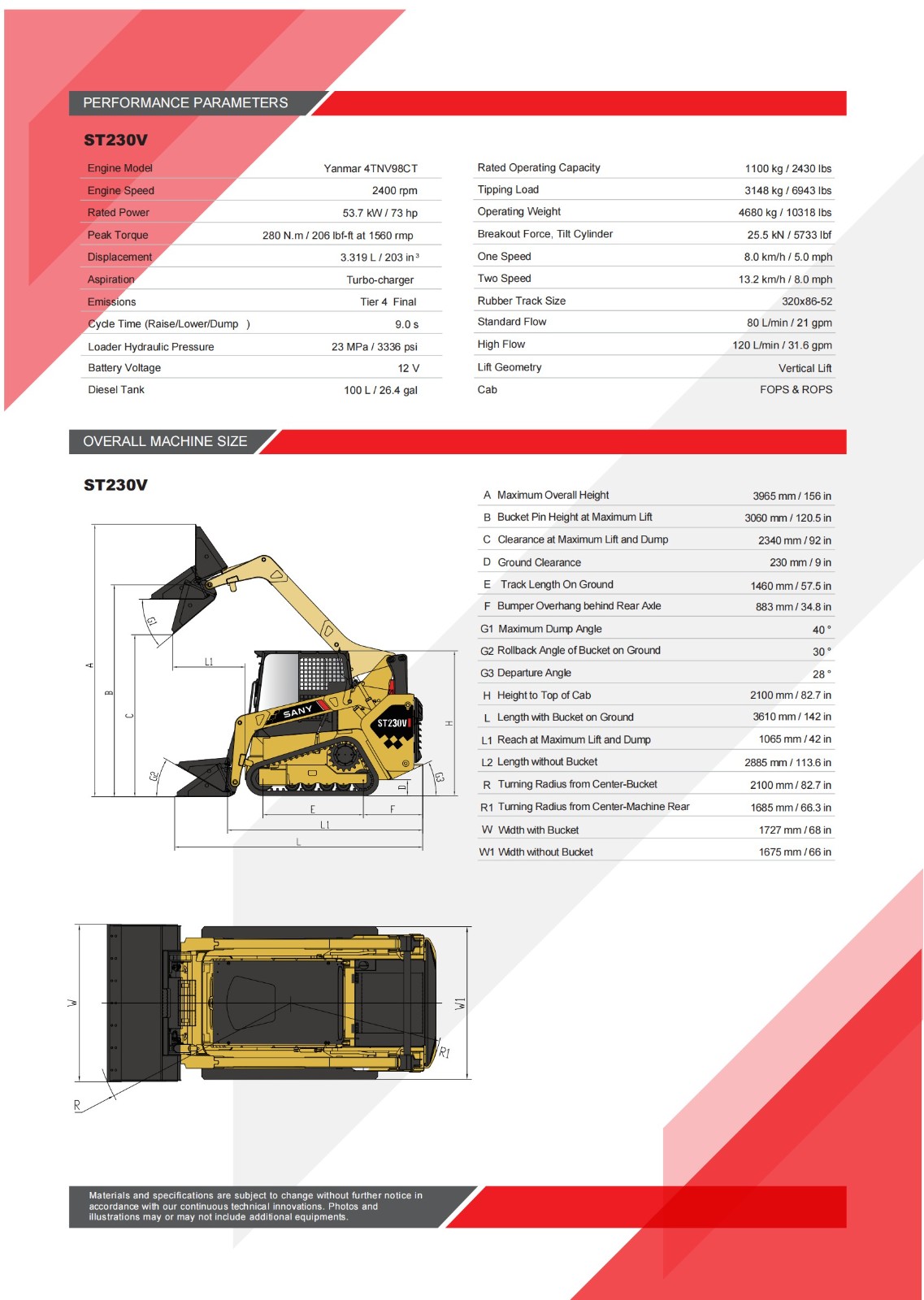

Machine Specifications:

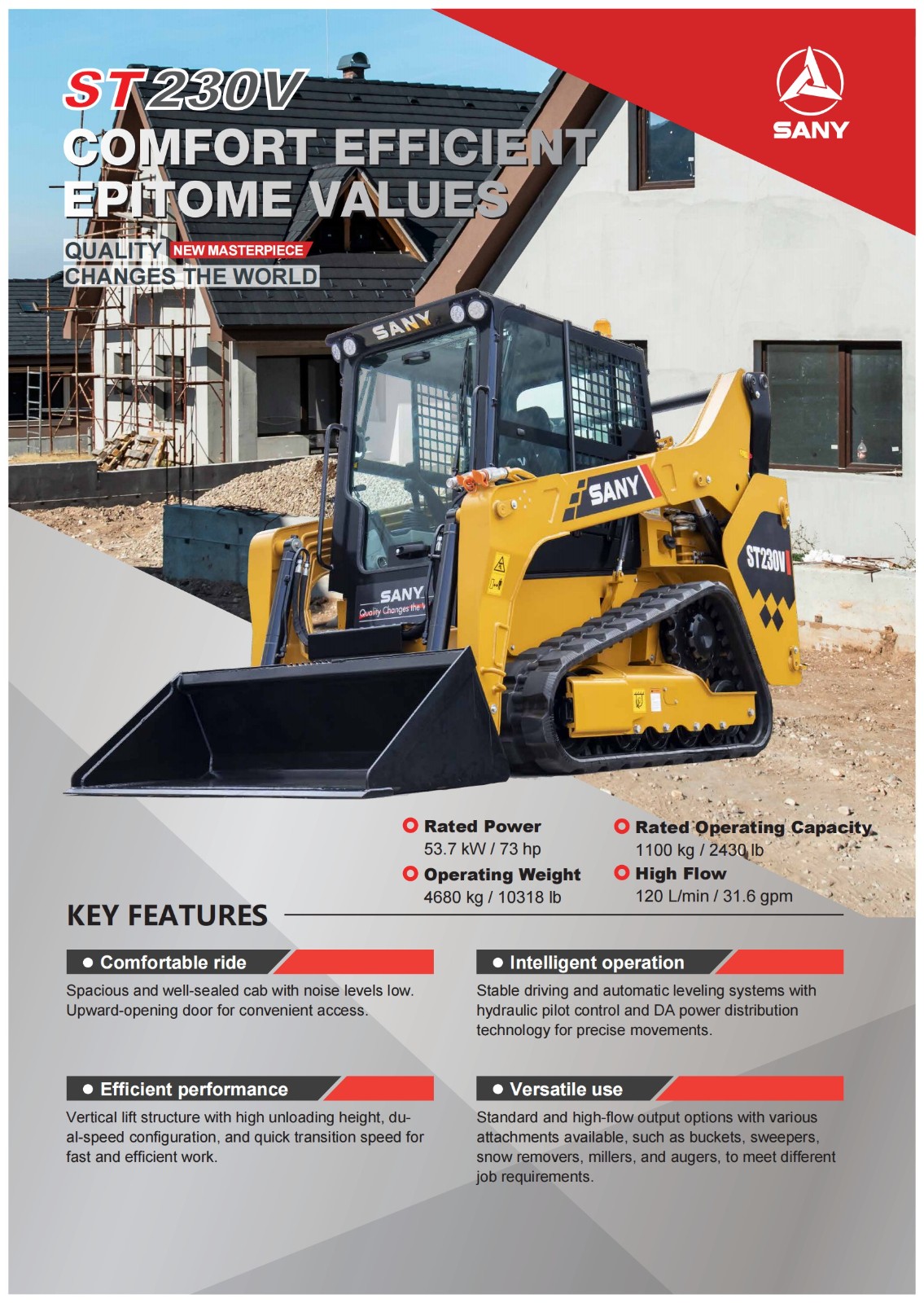

Model: SANY ST230V COMPACT TRACK LOADER
Performance:
- Operating Weight: 10,318 lbs (4,680 kg)
- Rated Operating Capacity: 2,430 lbs (1,100 kg)
- Tipping Load: 6,943 lbs (3,148 kg)
- Breakout Force (Tilt Cylinder): 5,733 lbf (25.5 kN)
- Standard Flow: 80 L/min (21 gpm)
- High Flow: 120 L/min (31.6 gpm)
- Lift Geometry: Vertical Lift
- Cycle Time (Raise/Lower/Dump): 9.0 sec
Powertrain & Hydraulics:
- Engine: Yanmar 4TNV98CT
- Rated Power: 73 hp (53.7 kW) @ 2,400 rpm
- Peak Torque: 206 lbf-ft (280 Nm) @ 1,560 rpm
- Displacement: 3.319 L (203 in3)
- Aspiration: Turbocharged
- Emissions: Tier 4 Final
- Battery Voltage: 12V
- Diesel Tank Capacity: 100 L (26.4 gal)
Dimensions:
- Max Overall Height: 156 in (3,965 mm)
- Bucket Pin Height at Max Lift: 120.5 in (3,060 mm)
- Clearance at Max Lift & Dump: 92 in (2,340 mm)
- Ground Clearance: 9 in (230 mm)
- Track Length on Ground: 57.5 in (1,460 mm)
- Rubber Track Size: 320x86-52
Standard Features:
- Enclosed cab with ROPS & FOPS certification
- Upward-opening door for easy access
- Hydraulic Pilot Control with DA Power Distribution
- Vertical lift for high unloading height
- Dual-speed for quick transitions
- Standard & high-flow options for attachments (buckets, sweepers, snow removers, augers, etc.)
- Automatic leveling system for precision movements
Warranty Terms:
- 36 Months / 3000 hours Standard Factory Warranty
